Archimedes' screw

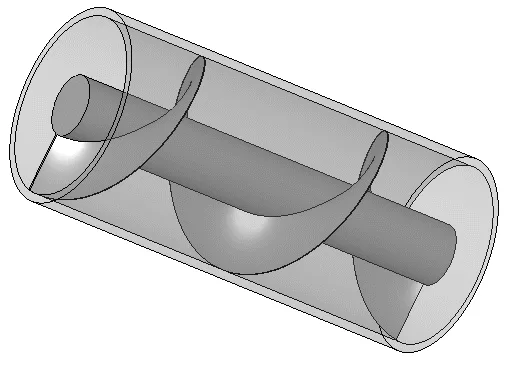

The Archimedes' screw, also known as the Archimedean screw, hydrodynamic screw, water screw or Egyptian screw, is one of the earliest hydraulic machines. Using Archimedes screws as water pumps (Archimedes screw pump (ASP) or screw pump) dates back many centuries. As a machine used for transferring water from a low-lying body of water into irrigation ditches, water is pumped by turning a screw-shaped surface inside a pipe. In the modern world, Archimedes screw pumps are widely used in wastewater treatment plants and for dewatering low-lying regions. Run in reverse, Archimedes screws turbine acts as a new form of small hydroelectric powerplant that can be applied even in low head sites. Such generators operate in a wide range of flows (0.01 to 14.5 ) and heads (0.1 m to 10 m), including low heads and moderate flow rates that is not ideal for traditional turbines and not occupied by high performance technologies. The Archimedes screw is a reversible hydraulic machine, and there are several examples of Archimedes screw installations where the screw can operate at different times as either pump or generator, depending on needs for power and watercourse flow. Archimedes screw is named after Greek mathematician Archimedes who first described it around 234 BC, although there is evidence that the device had been used in Ancient Egypt long before his time. A screw conveyor is a similar device which transports bulk materials such as powders and grains. History The screw pump is the oldest positive displacement pump. The first records of a water screw, or screw pump, date back to Hellenistic Egypt before the 3rd century BC. The Egyptian screw, used to lift water from the Nile, was composed of tubes wound round a cylinder; as the entire unit rotates, water is lifted within the spiral tube to the higher elevation. A later screw pump design from Egypt had a spiral groove cut on the outside of a solid wooden cylinder and then the cylinder was covered by boards or sheets of metal closely covering the surfaces between the grooves.
